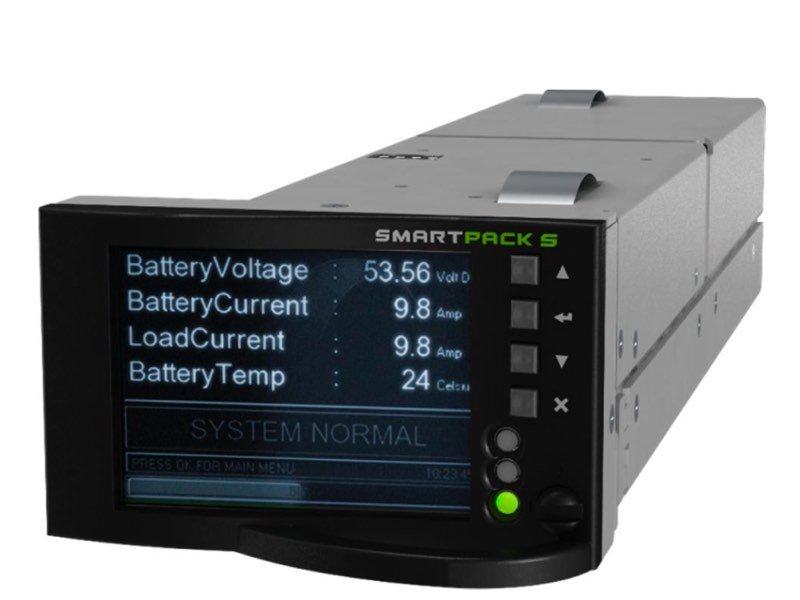

SMARTPACK S CONTROLLER
Eltek Smartpack S Controller
Compact, Rich-Featured, Hot-Swappable, All-in-One Controller
The Eltek Smartpack S (Part Number: 242100.410) is a versatile, all-in-one controller designed to manage all control and monitoring needs for small to medium telecom and industrial DC power systems. Perfectly suited for the Flatpack S system platform, this hot-swappable unit is the ideal solution for space-restricted applications. When utilized in 1U high, 265mm deep power racks, the Smartpack S delivers comprehensive monitoring and control for 2-3kW systems occupying less than 6 liters of space.
Description
Technical Specifications
| Feature | Specification |
| Input Voltage | 10-75 VDC (Nominal: 12VDC, 24VDC, 48VDC & 60VDC) |
| Power Consumption | 3.1W (display sleep) / 5.5W (display on) |
| Network Interface | 10/100 BASE-T Ethernet (HP Auto MDI/MDI-X) |
| IP Protocols | HTTP/SSL, SNMP v3, MODBUS TCP, pComm UDP |
| Serial Ports | RS-232 and RS-485 on RJ11 connector |
| Dimensions (WxHxD) | 72.2 x 43.0 x 220.7 mm (2.8 x 1.7 x 8.7″) |
| Operating Temperature | -20 to +65°C (-40 to 149°F) |
| Compliance & Standards | UL 60950-1, EN 60950-1, ETSI EN 300 386 V.1.4.1, EN 61000-6, RoHS compliant |
Additional information
| Condition | New |
|---|
