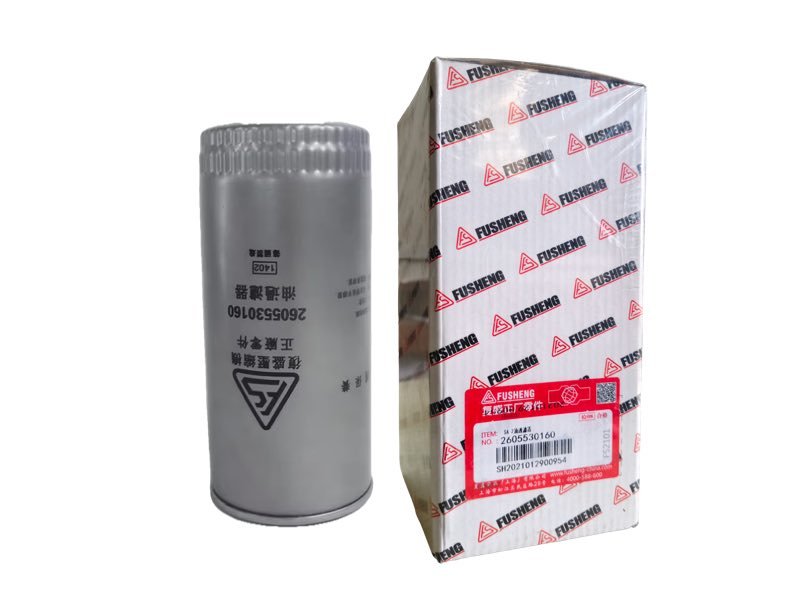

Fusheng Genuine Oil Filter Element (2605530160)
5,000.00৳
This filter element acts as a direct-fit or recommended alternative for:
- Equipment Series: Fusheng SA Series Screw Compressors (e.g., SA-2 series models)
- Interchangeable / Complementary Part Numbers: 2116020014, 2116020051, 2116029996, 2605531450, 71121111-48120
- Cross-Brand Compatibility: Select FS-Curtis configurations [1, 6, 11, 14]
In stock
Add to wishlist17Add to compareDescription
Here is a highly professional, comprehensive, and website-ready technical data sheet for the product shown in the image.
Technical Specifications: Fusheng Genuine Oil Filter Element (2605530160)
The Fusheng 2605530160 Oil Filter Element is a premium, high-performance industrial compressor filter engineered specifically for Fusheng screw air compressors. It removes metallic particles, dust, and degraded oil contaminants from the system to ensure smooth operation, maximum lubrication efficiency, and prolonged equipment life. [1, 2, 3, 4]
⚙️ Core Specifications
| Feature [1, 2, 4, 5, 6, 7, 8] | Value / Specification |
|---|---|
| Manufacturer | Fusheng Industrial Co., Ltd. (Genuine Factory Part) |
| Model / Part Number | 2605530160 (Also designated as SA-2 Oil Filter) |
| Filter Media | High-efficiency American HV glass fiber & Korean Ahlstrom filter paper |
| Filtration Accuracy | 10 to 20 microns |
| Filtration Efficiency | ≥98.8% |
| Service Life | Approx. 2,000 working hours (variable by operational conditions) |
| Working Temperature | -10º to 100º C |
| Initial Pressure Drop | ≤0.02 MPa |
📐 Physical Dimensions
- Outer Diameter (OD): 93 mm
- Total Height: 212 mm
- Thread Size: Standard 1″-12 spin-on thread
- Structure Type: Spin-on canister with integrated inner support grid and top fluted grips [9, 10]
🚀 Key Features & Benefits
- Authentic Factory Quality: Formulated to strict original manufacturing standards to minimize system friction and bypass failures.
- High Dust-Holding Capacity: Multi-layered pleated media offers optimal surface area, enabling long service life without restricting oil flow.
- Heavy-Duty Construction: Features a corrosion-resistant steel casing designed to withstand high vibration and pressure fluctuations in industrial compressor rooms.
- Reliable Sealing System: Comes equipped with a robust, pre-lubricated high-temperature rubber gasket to eliminate leak pathways. [3, 8, 11, 12, 13]
Additional information
| Condition | New |
|---|---|
| Warranty | 1 Year |
| Brand | FUSHENG |
